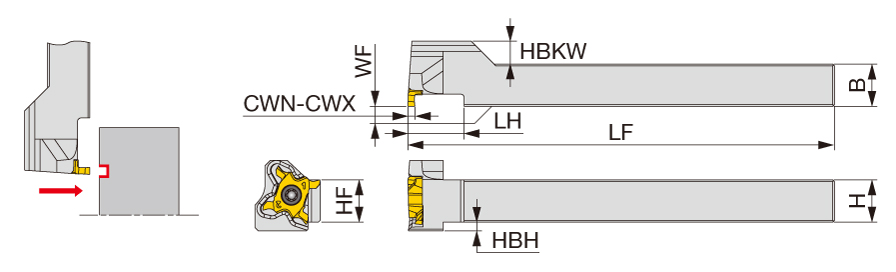

| Shank Width (B) | 12 mm | Tool Type | Face Grooving Tools |
| Shank Height (H) | 12 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Functional Width (WF) | 0 mm |
| Overall Length (OAL) | 120 mm | Measurement Type | Metric |
| Application | | Face grooving | | Unit | M |
| Head Length (LH) | 16 mm |
Product Features
| Family Description | Face grooving toolholder for Swiss lathes | FamilyName | STCFVR-18 |
| Remarks | The left hand insert (L) is used for the right hand toolholders (R). Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Face Groove/Turn Indexable Holders
FamilyName
STCFVR-18
BrandName
Tungaloy
