MTECSH06038C120.8ISO AH750

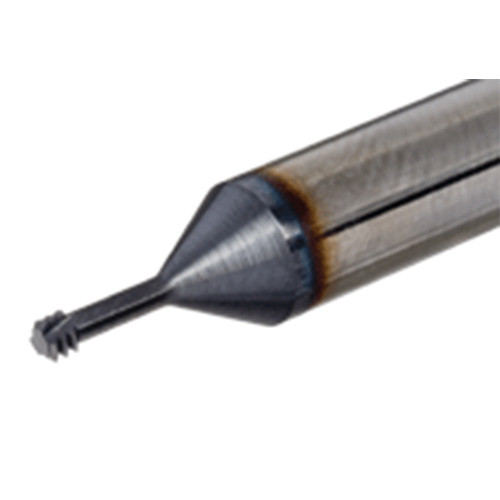

Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread.

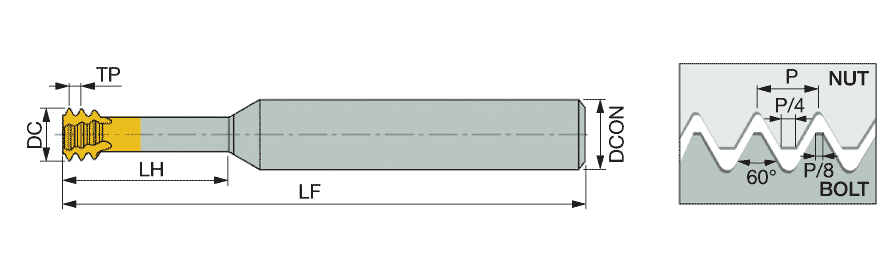

| Connection Diameter Machine Side (DCONMS) | 6 mm | Threads per Inch Maximum (TPIX) | 31.8 |
| Cutting Diameter (DC) | 3.8 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 58 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | AH750 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Int. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
| Threads per Inch Minimum (TPIN) | 31.8 |
Product Features
| Family Description | Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread. | COO | ISRAEL |
Shipping Info
Weight per item
0.0220
