| Connection Diameter Machine Side (DCONMS) | 3 mm | Functional Width (WF) | 1.4 mm |
| Minimum Bore Diameter (DMIN) | 3.2 mm | Usable Length (LU) | 15 mm |
| Functional Length (LF) | 50 mm | Shank Height (H) | 2.7 mm |
| Coating | TiCN | Body Material | Carbide |
| Grade | TM4 | Cutting Edge Material | Carbide |
| Application | | Inserts for miniature | | Measurement Type | Metric |
| Corner Radius (RE) | 0.05 mm | Unit | M |
| Cutting Depth Maximum (CDX) | 0.4 mm |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | SHFS-S Sharp cutting edge |
Shipping Info
Weight per item
0.0052
Name

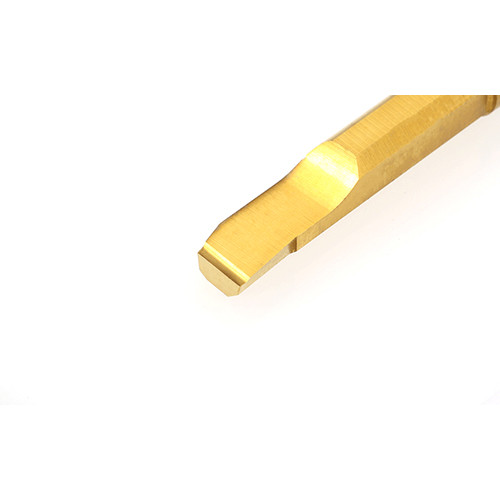

Solid Boring Bars
FamilyName
SHFS-S Sharp cutting edge
BrandName
NTK Cutting Tools
