| Application | | Ceramic and carbide insert | | Cutting Edge Material | Ceramic |

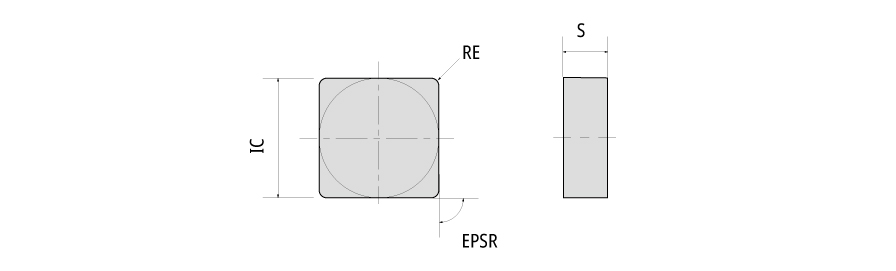

| Corner Radius (RE) | 1.2 mm | Grade | HC4 |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Body Material | Carbide |
| Insert Included Angle (EPSR) | 90 Degrees | Unit | M |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | SN.N type insert |
Shipping Info
Weight per item
0.0034
Name
Turning Indexable Inserts
FamilyName
SN.N type insert
BrandName
NTK Cutting Tools
