VSC095L080S06-C
TungMeister, Straight shank for VST type slotting heads

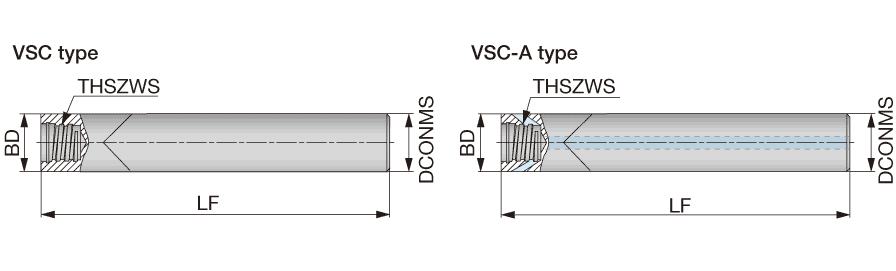

| Application | | Straight shape | | Shank Type | Round |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | S06 | Body Diameter (BD) | 3/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Measurement Type | Inch |
| Overall Length (OAL) | 3.15″ | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Unit | I |
Product Features
| Family Description | TungMeister, Straight shank for VST type slotting heads | FamilyName | VSC type |
| Remarks | For VSC type shank, just VST slotting head is recommended. If other heads are used on the VSC shank, the depth of cut must be smaller than the APMX in each head. The VSC type shank does not have external clearance, so the shank may interfere with the work piece. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.1874
Name
Solid End Mill Shanks
FamilyName
VSC type
BrandName
Tungaloy
