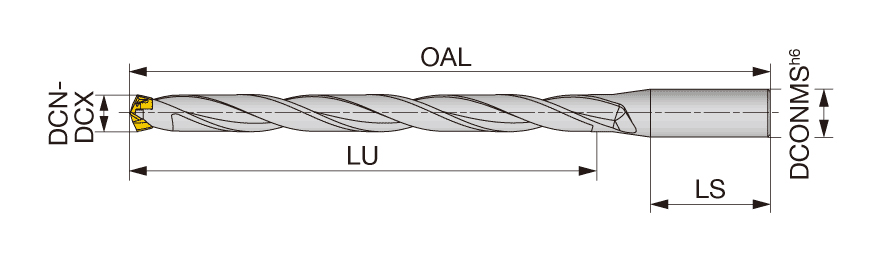

| Usable Length (LU) | 134 mm | Shank Length (LS) | 48 mm |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 11 | Master Insert Identification (MIID) | DMP110 |
| Cutting Diameter Minimum (DCN) | 11 mm | Point Length (PL) | 1.67 mm |
| Cutting Diameter Maximum (DCX) | 11.4 mm | Body Material | Steel |
| Overall Length (OAL) | 196.45 mm | Unit | M |
Product Features

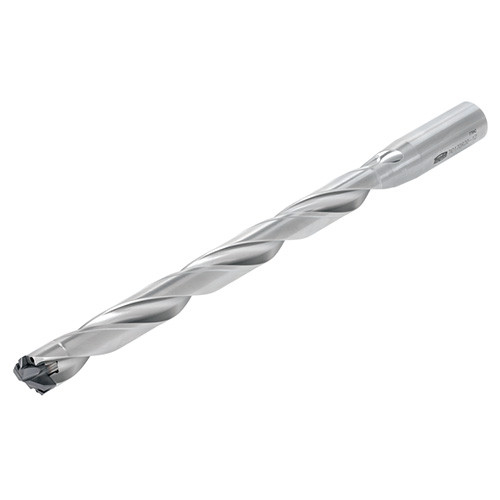

| Family Description | DrillMeister Indexable head drill with cylindrical shank | COO | JAPAN |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Weight per item
0.0000
