JSXXL1212X09B-S-CHP

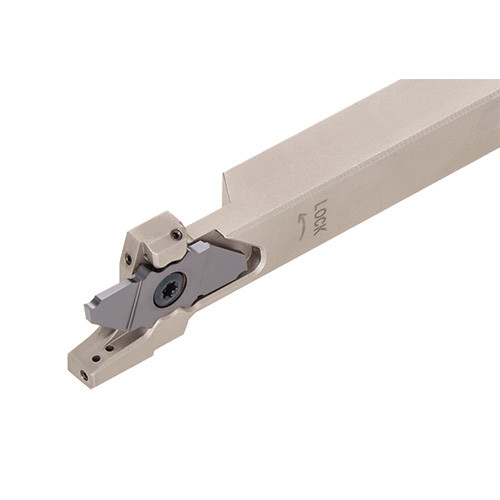

Parting off tool with high pressure coolant channels, for sub spindol in swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose.

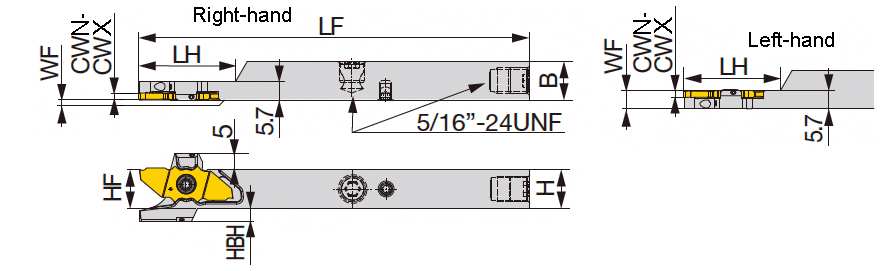

| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.6 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 20 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Left Hand |
| Overall Length (OAL) | 121 mm | Measurement Type | Metric |
| Head Length (LH) | 19.4 mm | Insert Seat Size Code (SSC) | - |
| Cutting Depth Maximum (CDX) | 10.5 mm | Functional Width (WF) | 5.5 mm |
| Overall Height (OAH) | 12 mm | Tool Assembly Length (LTA) | 40 mm |
| Application | | Ext Threading | External grooving | For Miniature machining | Parting off | | Unit | M |
Product Features
| Family Description | Parting off tool with high pressure coolant channels, for sub spindol in swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose. | FamilyName | JSXXR/L-X-S-CHP |
| Remarks | When JX**12... insert is used, "LF" and "LH" are shorter 2 mm. When JX**06... insert is used, "LF" and "LH" are shorter 4 mm. When JX**20... insert is used, "LF" and "LH" are longer 2 mm. The right hand insert (JX****R...) is used for the right hand toolholders (JSXXR...), and the left hand insert (JX****L...) is used for the left hand toolholders (JSXXL...). Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Parting Off Indexable Holders
FamilyName
JSXXR/L-X-S-CHP
BrandName
Tungaloy
