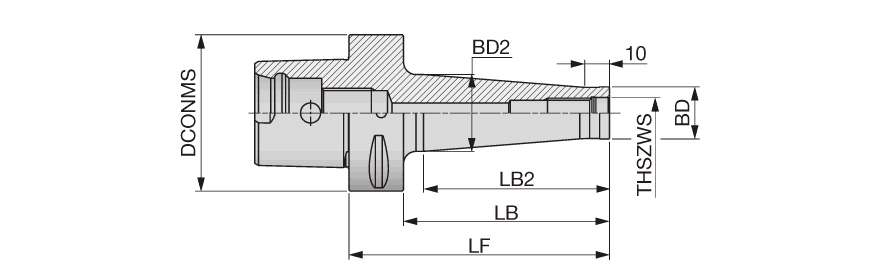

| Shank Size (SS) | 50. | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 33 mm | Overall Length (OAL) | 53 mm |
| Body Diameter (BD) | 29 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Body Material | Steel |
| Application | | Face contact interface | | Unit | M |
| Body Length_2 (LB_2) | 25 mm |
Product Features
| Family Description | TungCap TungFlex modular tooling system | FamilyName | C-ODP (TungFlex) |
| Remarks | Applicable for 7 MPa coolant | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
0.6370
Name
Drill Chucks & Adapters
FamilyName
C-ODP (TungFlex)
BrandName
Tungaloy
